Understanding the Honeywell P500 Series Processor for Industrial Flame Monitoring

In today's industrial landscape, safety and efficiency are paramount. Whether you're operating a chemical plant, an oil refinery, or a power generation facility, maintaining a safe environment is non-negotiable. One critical aspect of ensuring safety is monitoring and controlling combustion processes, and this is where the Honeywell P500 Series Processors for industrial flame monitoring come into play.

What the P500 Series Does

The Honeywell P500 Series signal processors — the P522, P531, and P532 — are the brain of an industrial flame monitoring system. Paired with S55XBE Series viewing heads, they continuously read the flame signal coming from your burner, confirm that a stable flame is present, and trigger a safety shutdown if something goes wrong.

If your plant runs natural gas, coal, oil, or dual fuels, you likely already have a P500 Series processor in the loop. When one fails or needs replacement, getting the right part number quickly is what matters most.

What are these processors used for?

1. Flame Detection: The primary purpose of a Honeywell P500 Series Processor is to detect and monitor flames in industrial burners and furnaces. It utilizes advanced flame detection technology to provide real-time information about the presence, quality, and stability of the flame.
2. Safety: Safety is paramount in industrial settings, especially those involving combustible materials. The P500 Series Processors ensures that burners and furnaces operate within safe parameters. If a processor detects an abnormal flame condition, it can trigger immediate safety shutdowns to prevent accidents and catastrophic incidents.
3. Efficiency Optimization: Beyond safety, a P500 Series Processor can also contribute to operational efficiency. By continuously monitoring the flame, it helps plant operators make adjustments to optimize combustion, reduce fuel consumption and minimize emissions. This not only improves cost-effectiveness but also ensures compliance with environmental regulations.
4. Data Logging and Analysis: A P500 Series Processor is equipped with data logging capabilities, allowing plant operators to record and analyze historical flame data. This information is invaluable for performance analysis, troubleshooting, and maintenance planning.

When Do You Need a Honeywell P500 Series Processor?

1. Highly Combustible Processes: If your factory or plant involves highly combustible materials such as natural gas, coal, oil, or petrochemicals, a Honeywell P500 Series Processor is essential. It ensures that flames remain stable and within safe boundaries during combustion.
2. Critical Processes: In industries where downtime can result in substantial financial losses or safety hazards, such as power generation, chemical manufacturing, and oil refining, a P500 Series Processor is a crucial tool for preventing unplanned shutdowns and ensuring uninterrupted operations.
3. Stringent Safety Regulations: If your facility is subject to strict safety regulations and compliance requirements, the P500 Series Processor can help you meet these standards by providing reliable flame monitoring and safety shutdown capabilities.
4. Emissions Control: If your plant is committed to reducing emissions and meeting environmental regulations, the P500 Series Processor can assist in optimizing combustion for minimal emissions while maintaining process efficiency.

Dual UV/IR Detection — Why It Matters

All P500 Series processors detect both ultraviolet (UV) and infrared (IR) flame signatures, which is critical in mixed-fuel or difficult sensing environments:

• UV detection — best suited for clean-burning fuels like natural gas, where the flame emits a strong ultraviolet signal.
• IR detection — better for oil, coal, or dusty/smoky environments where particulates can scatter UV light and produce false readings.



Facilities that switch between fuels, or that deal with high-temperature ambient interference, X-ray sources, or gamma radiation in the flame path, rely on the dual-channel capability of the P500 Series to maintain reliable discrimination.

In conclusion, the Honeywell P500 Series Processor is an indispensable tool for plant operators in various industrial settings. Its ability to monitor and control flames not only ensures safety but also contributes to operational efficiency and compliance with environmental regulations. If your factory deals with highly combustible materials, critical processes, stringent safety standards, or emissions control, you're probably using a Honeywell P500 Series Processor as a wise decision that can safeguard your operations and your reputation.

Reach out to us today if you need a new Honeywell processor; as a distinguished Honeywell distributor, we're providing parts for plants all across the United States.

Honeywell P500 Series Processors Models

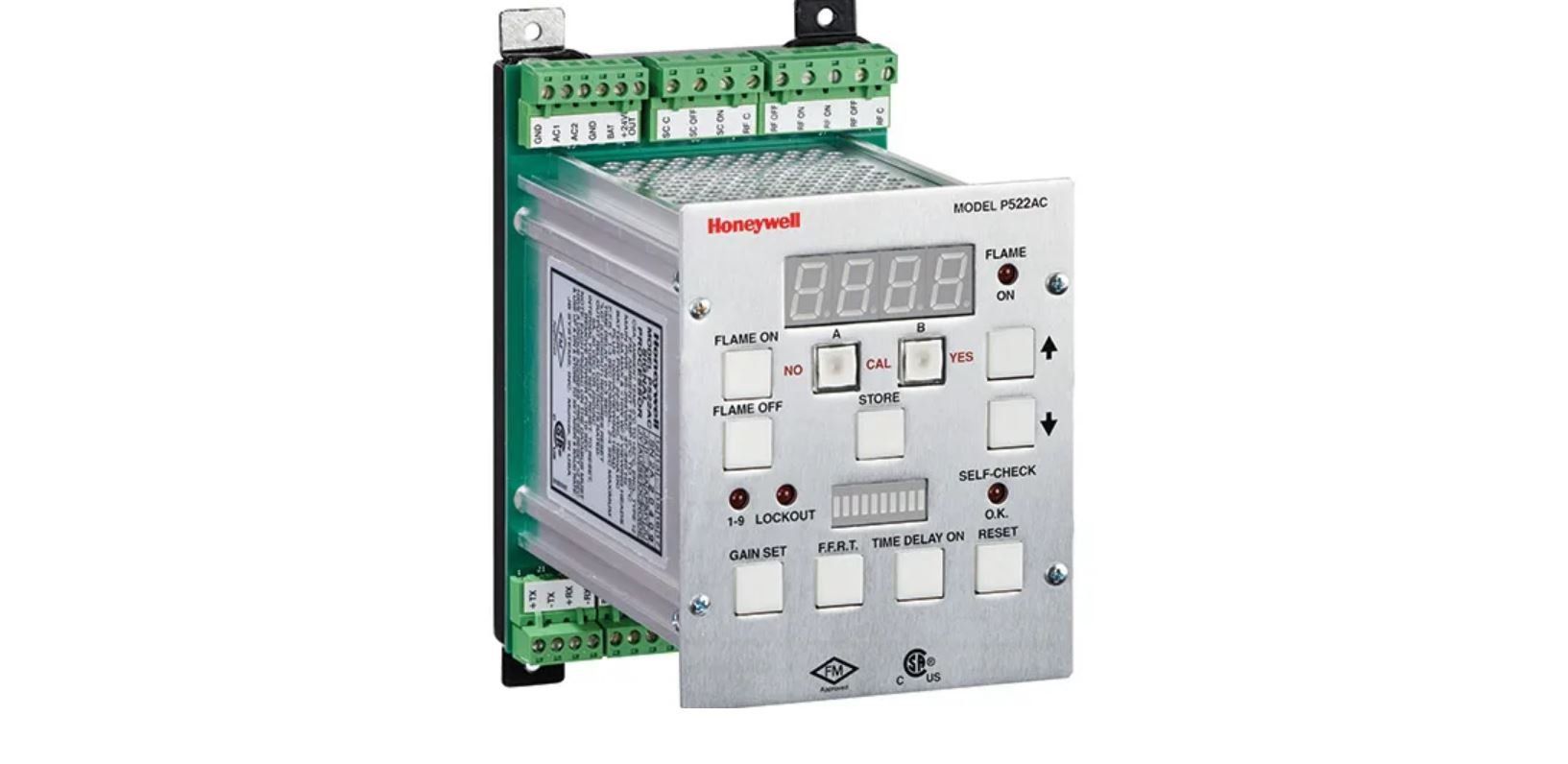

• P522AC / P522DC — The workhorse of the P500 family. Dual UV/IR detection. AC or DC power input. Widely used in refineries and power plants throughout Texas and Louisiana.
• P531AC / P531DC — Adds multi-burner capability. Suitable for installations with multiple burner zones on a shared processor.
• P532UI / P532AC / P532DC — Universal input model with extended configuration options. Ideal for facilities managing diverse fuel types or flame detection conditions.

Common Applications for Honeywell P500 Series Processors

Honeywell P500 Series Processors are often used in these types of situations:

• Petroleum and petrochemical refineries
• Power generation boilers and furnaces
• Pulp, paper, and metals processing facilities
• Multi-fuel burner systems requiring flame discrimination
• Facilities subject to NFPA 85 or similar combustion safety standards

Diamond Systems has been a Honeywell Industrial Flame Monitoring distributor for over 25 years. If you know your part number, call us directly at 972-539-0889 and we'll confirm availability and get your order moving. If you're not sure which P500 model your system uses, we can help you identify the right processor based on your viewing head configuration and fuel type.

We serve refineries and plants across Texas and the Gulf Coast, including Louisiana, in addition to shipping all across the U.S. Most customers reach us by phone; we're a working distributor, not a big-box catalog, and Walt Collins has the industry experience to actually help troubleshoot what you need.



Call 972-539-0889 or email sales@diamondsystemstx.com to check availability.
