What Is a Honeywell Flame Scanner?
A Honeywell flame scanner is an optical sensor system used in industrial burners, boilers, and furnaces to confirm the presence of an active flame. It watches the burner continuously — reading the ultraviolet (UV) or infrared (IR) light signature of the flame — and triggers a safety shutdown if flame loss is detected.
Honeywell's Industrial Flame Monitoring (IFM) product line is one of the most widely installed flame scanner systems in petroleum refineries, power generation plants, and petrochemical facilities across Texas and the Gulf Coast. If your plant runs a Honeywell flame scanner system and needs a replacement component, Diamond Systems is your source.
Honeywell Flame Scanner Models We Carry
Diamond Systems stocks replacement parts for the full Honeywell IFM flame scanner line:
Viewing Heads (Flame Scanners)
- S55XBE Series — Versatile UV/IR viewing head for demanding industrial burner applications. Pairs with P500 Series processors.
- S550BE / S552BE / S556BE — Extended-capability UV/IR scanners for multi-burner and dual-fuel environments.
- S702 / S702PF — UV flame scanner for single-burner applications. The PF variant adds purge-and-proving capability.
- S706 / S706PF — Multi-spectral UV flame scanner for more challenging sensing environments.
- S802 / S806 — High-temperature rated viewing heads for steam reformers and Airgas plant applications.
Signal Processors
- P522AC / P522DC — Dual UV/IR processor. The most widely used model in Gulf Coast refineries and power plants.
- P531AC / P531DC — Multi-burner signal processor for systems with multiple burner zones.
- P532UI / P532AC / P532DC — Universal input processor with extended configuration flexibility.
- 700ACSP / 700DCSP — Cost-effective single-burner processors for S700/S800 Series viewing heads.
Flare Stack Flame Monitoring

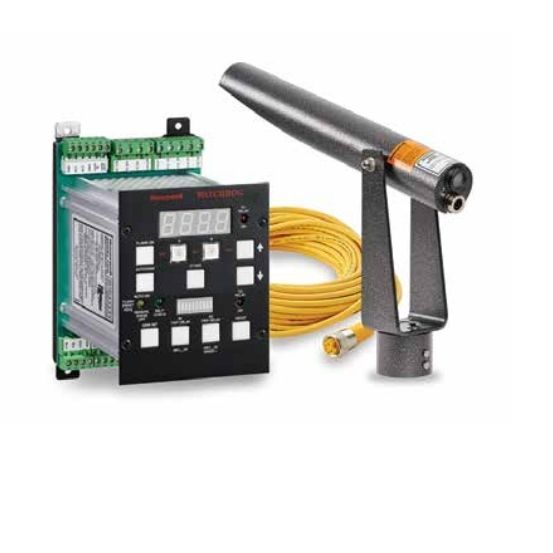

- Honeywell Watchdog IIIBE (P222) — Complete flare stack pilot flame monitoring system. Required by EPA and TCEQ for most elevated flare applications at Texas and Louisiana refineries.
How a Honeywell Flame Scanner Works
Every Honeywell IFM flame scanner system consists of two main components: a viewing head (the optical sensor positioned near the burner) and a signal processor (typically mounted in the control room or a local panel). The viewing head captures the flame's light signal and sends it to the processor, which analyzes the signal and outputs a flame-present or flame-failure status.
Honeywell flame scanners use three sensing technologies depending on the model:
- Ultraviolet (UV) detection — best for natural gas, propane, and clean-burning fuels where the flame emits a strong UV signature. Fast response; good discrimination against background radiation.
- Infrared (IR) detection — better for oil-fired burners and environments with smoke, soot, or particulates that attenuate UV light.
- Dual UV/IR detection — used when fuel type changes, when ambient conditions are difficult, or when maximum discrimination against false signals is required. Standard on P500 Series processors.
When You Need a Replacement Flame Scanner
Flame scanner components degrade over time from heat cycling, UV exposure, vibration, and fouling of optical surfaces. Common signs that a viewing head or processor needs replacement:
- Frequent nuisance flame-failure trips with no actual burner problem
- Slow or erratic flame-on response during burner light-off
- Intermittent flame signal that fluctuates without changes in burner conditions
- Flame scanner indicating flame-present after confirmed burner shutdown (false positive)
- Viewing head lens fouling that cannot be resolved with cleaning
- Processor fault codes or relay failures
If your maintenance team is seeing any of these symptoms, the fastest path to resolution is calling Diamond Systems with your model number. Walt Collins has over 40 years of experience in industrial combustion systems and can help your team diagnose whether the issue is the viewing head, the processor, the cable, or a system configuration problem.
Industries We Serve
- Petroleum and petrochemical refineries — Texas and Gulf Coast Louisiana
- Power generation — natural gas, oil, and dual-fuel boilers
- Industrial gas facilities — steam reformers, Airgas plants
- Pulp and paper mills, metals processing facilities
- Chemical plants, Claus reactors, and hydrogen processing
- Thermal oxidizers, lime kilns, and process heaters
Why Plant Engineers Call Diamond Systems
Diamond Systems has been an authorized Honeywell IFM distributor for over 25 years. We are not a large catalog house; we are a specialist. When you call 972-539-0889, you reach someone who knows the Honeywell IFM product line in depth and can confirm whether the part you need is the right one for your application.
Most of our customers are experienced plant engineers and instrument technicians who call us with a part number in hand. We confirm availability and get the order moving. If you are newer to your plant's flame monitoring system and are not sure of the exact model number, we can help you identify the correct replacement based on your viewing head configuration, fuel type, and burner application.
We are based in Flower Mound, Texas, and ship Honeywell flame scanner parts to plants across Texas, Louisiana, and the entire United States.
Call 972-539-0889 or email sales@diamondsystemstx.com to place an order.
